ARJES

EKOMAXX 800

Highlights of the mobile intermediate class

The ARJES EKOMAXX 800 is a mobile two-shaft shredder that impresses with its crawler track system as standard, innovative quick change system, tilting hopper, robust design and a long lifetime.

With an energy-efficient 235 kW diesel motor, it offers an optimum cost-benefit ratio for our customers. Typical users are mainly found in composting and wood processing plants as well as in the treatment of commercial waste.

Explore the features of the Ekomaxx 800 heavy equipment for your industrial needs.

Throughput rates

⌀ 12 – 25 t/h Commercial Waste
⌀ 35 – 80 t/h Green Waste
⌀ 20 – 50 t/h Waste Wood
⌀ 7 – 15 t/h Rubber and Waste Tires
⌀ 15 – 35 t/h Trunk Wood and Rootstocks
⌀ 15 – 30 t/h Paper and Cardboard

Our arguments

The performance data given are average values without guarantee! The real values ​​depend on the equipment of the shredder, the shaft configuration, the position of the side combs, and the optimal material feed.

  • Incl. standard attachments*
    (e.g. reversible fan, overbelt magnet, water sprinkler)
  • Largest range of applications
  • Revolutionary shaft quick change system
  • Hydraulically adjustable tilting hopper
  • Innovative SCU plug and play control

Product Specifications

EKOMAXX 800

DRIVE

Engine Diesel

TAD 883 VE (EU/US) TAD 853 VE (ROW)**

Emission standard

Stage V (EU) EPA Tier IV (US) Stage III A (ROW)**

Power (kW/HP)

235 / 320

Fuel capacity (l)

400

DIMENSIONS

Length (mm)

9,900 / 8,100 (transport)

Width (mm)

2,450 / 2,450 (transport)

Height (mm)

4,000 / 3.100 (transport)

Total weight (kg)

21,000

Discharge height (mm)

3,300
The Ekomaxx 800 shredding unit is designed for efficient plastic processing.
1/3
Technical highlights

Mechanically adjustable side combs

To change the requested output grain size, the side-arranged combs can be opened or closed in full. Thus the throughput can be adjusted in accordance with the type of material and the customer‘s requirements.

Rendering of the Ekomaxx 800 e-PU quick change system showcasing its design and features.
2/3
Technical highlights

Quick change system for tool shafts

Increase operational efficiency through quick and easy shaft changes and make maintenance and reprocessing of worn shredding shafts easier.

Ekomaxx 800 tilting hopper for plastic processing.
3/3
Technical highlights

Optional hydraulically adjustable tipping hopper

For loading via wheel loader with a shovel width of up to 3.60 m, the shredding unit can be equipped equipped with a tilting hopper that is adjustable up to 180°.

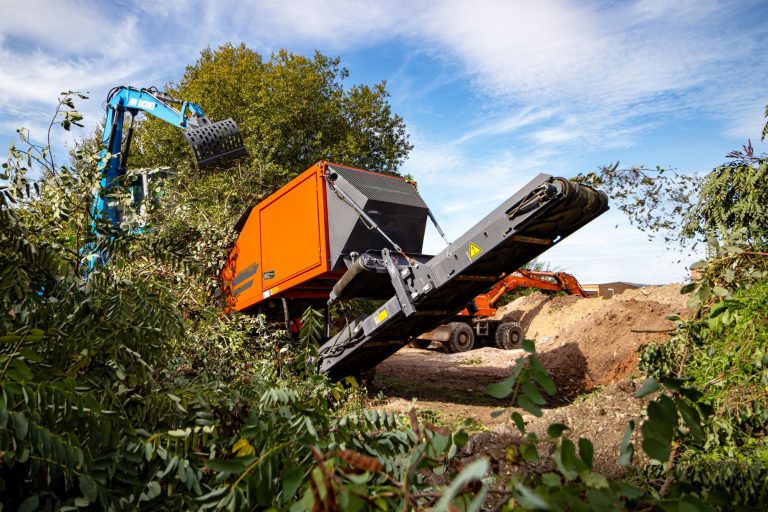

EKOMAXX 800 in Action
